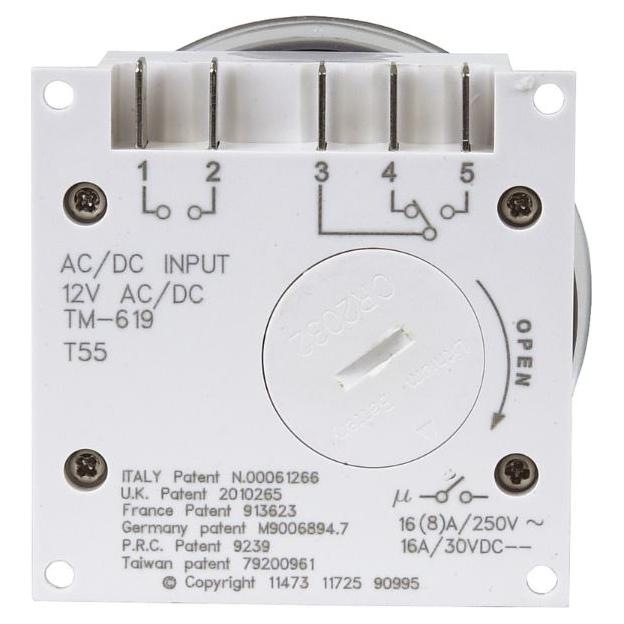

These Digital Timers are ideal for many switching Applications.
We use these times for our Stable Lighting Kits but they can be used for other uses such as controlling heating, gate controllers etc.
Practically any other switching application that requires multiple unattended switching cycles.
The timer has 16 on/off settings that can be programmed to function on any day, or combinations of days across the week.
Each of the on/off settings can be set independently.
For example, setting one could turn your lights on at 5:00am and off at 7:00am each week day.
Setting two could switch your lights on and off at your desired times in the evenings. Setting three could switch the lights on and off on Saturday and setting four could control other on/off times for Sunday.
Each on/off setting can be associated with a range of days from a single day to every day, thus giving 112 possible on/off cycles per week. The setting process is simple and intuitive.
Two models available:
* 12VDC supply voltage. Switching capacity: 16A @ 240VAC
* 240ACV supply voltage. Switching capacity: 30A @ 240VAC
Common Specifications:
> Manual override switch
> LED power indicator
> 7VA Power Consumption (approx.)
> Running Accuracy: =< 1 second / day
